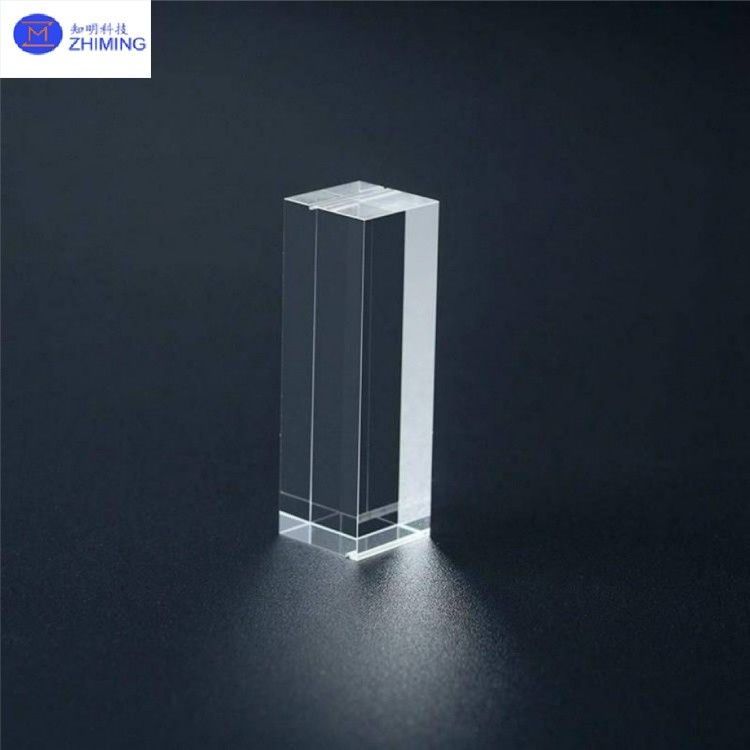

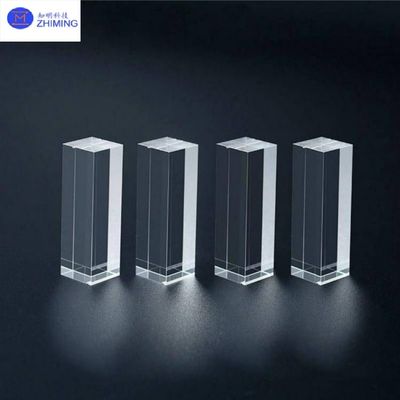

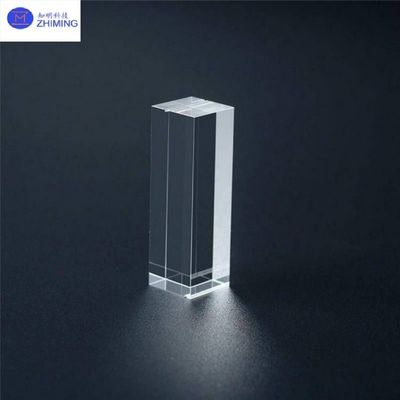

Transparent Quartz Prism Quartz Glass Crystal Customized by Drawings
Quartz prisms are spectroscopic or refractive optical components precision-fabricated from high-purity fused silica (SiO₂≥99.99%) through cold working processes. They exhibit exceptional optical homogeneity (Δn≤±5×10⁻⁶) and broad-spectrum transmission (170nm-2500nm), with a low thermal expansion coefficient (0.55×10⁻⁶/°C) and high laser damage resistance (LIDT>10J/cm²@1064nm), making them ideal for laser systems, spectrometers, and UV optical devices.

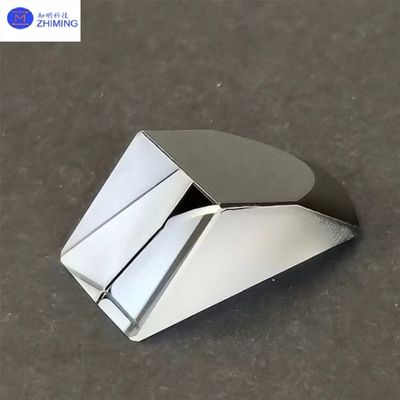

ZMSH specializes in manufacturing high-precision optical components, offering customized design, precision machining, and coating services for quartz prisms. We support client-provided drawings for custom orders, including right-angle, equilateral, and beam-splitting prisms, achieving micron-level surface accuracy (λ/10@632.8nm) and ultra-smooth finishes (Ra≤0.5nm).
Specification for quartz prism
| Parameter |
Specification |
| Material |
High-purity fused silica (SiO₂≥99.99%) |
| Transmission Range |
170nm~2500nm (UV to NIR) |
| Refractive Index @587.6nm |
1.458 |
| Thermal Expansion Coefficient |
0.55×10⁻⁶/°C (20~300℃) |
| Surface Flatness |
λ/10@632.8nm (Standard), λ/20 (High Precision) |
| Angular Tolerance |
±5 arcsec (Standard), ±3 arcsec (High Precision) |
| Surface Roughness |
Ra≤0.5nm (Super Polished) |
| Laser Damage Threshold |
>10J/cm²@1064nm, 10ns pulse |
| Size Range |
5mm~300mm (Customizable) |
Note: Custom coatings (AR/HR/PBS) and metrology reports available upon request.
Key features of quartz prism
The core advantages of quartz prisms include:
- Broad-Spectrum Transmission: High transmittance from UV to IR (UV>85%@200nm, visible>93%@550nm) for multi-band optical systems.
- Thermal Stability: Withstands temperatures up to 1000°C with minimal thermal drift.
- Chemical Inertness: Resistant to acids/alkalis (except HF), suitable for harsh environments.
- High LIDT: Superior to conventional optical glass for high-power laser applications.
- Precision Machining: Angular tolerance within ±3 arcsec and surface roughness ≤0.5nm.
Primary applications of quartz prism
Quartz prisms are widely used in:
- Laser Technology: Tuning prisms or beam expanders in laser cavities requiring high damage resistance.
- Spectroscopy: Dispersion elements in spectrometers demanding high homogeneity and low stray light.
- UV Optics: Beam-steering prisms for UV lasers reliant on deep-UV transmission.
- Research Instruments: Refractive/dispersive components in interferometers/telescopes needing sub-micron surface accuracy.
- Industrial Inspection: Alignment prisms in wafer inspection tools, tolerant to high temperatures and contamination-free.
ZMSH's Services
ZMSH provides end-to-end solutions for quartz prisms, covering material selection, optical design, precision machining, and coating. Our CNC grinding and ion-beam polishing ensure angular accuracy (±5 arcsec) and surface quality (λ/20@632.8nm). Custom coatings (AR/HR/PBS) are available with complimentary interferometer reports (including PV and transmission curves). We accept R&D orders (from 10 units) and OEM bulk production, delivering within 7-15 days, with optical system integration support.
